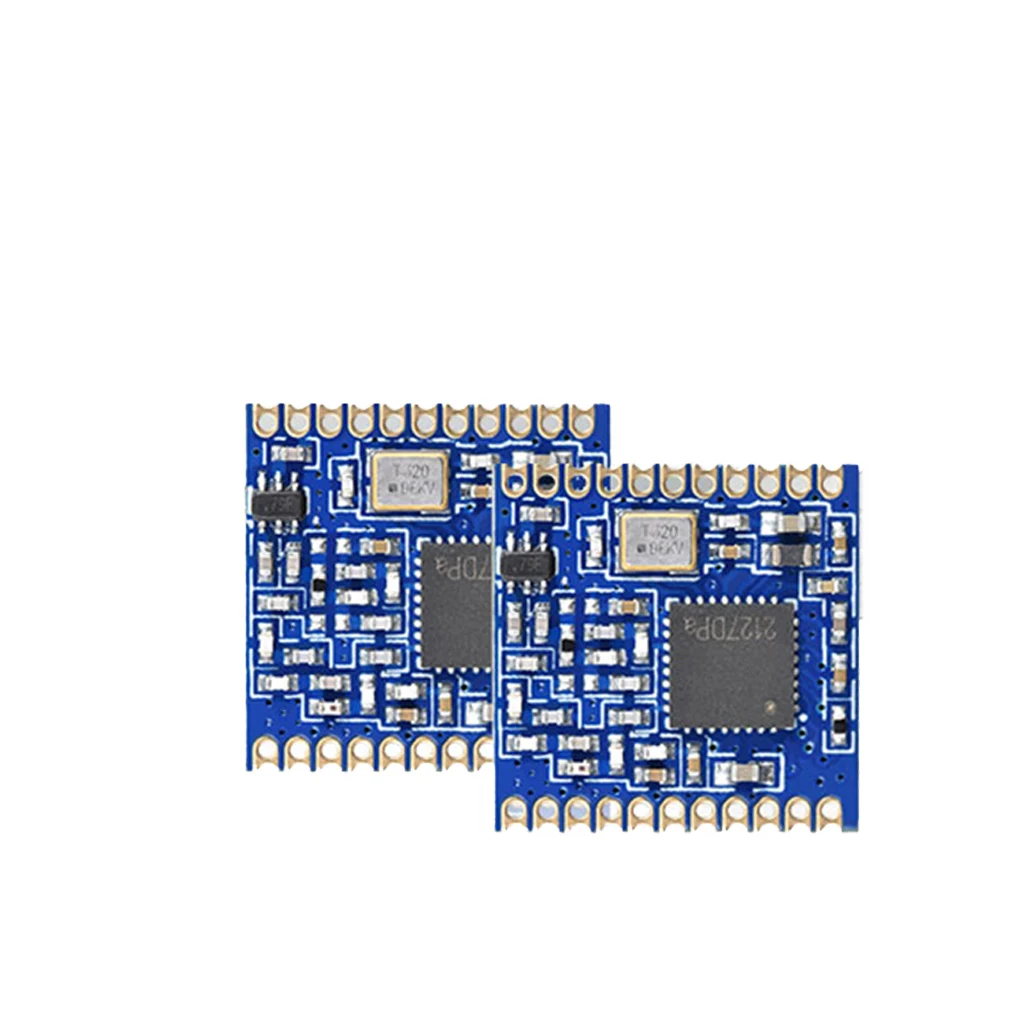

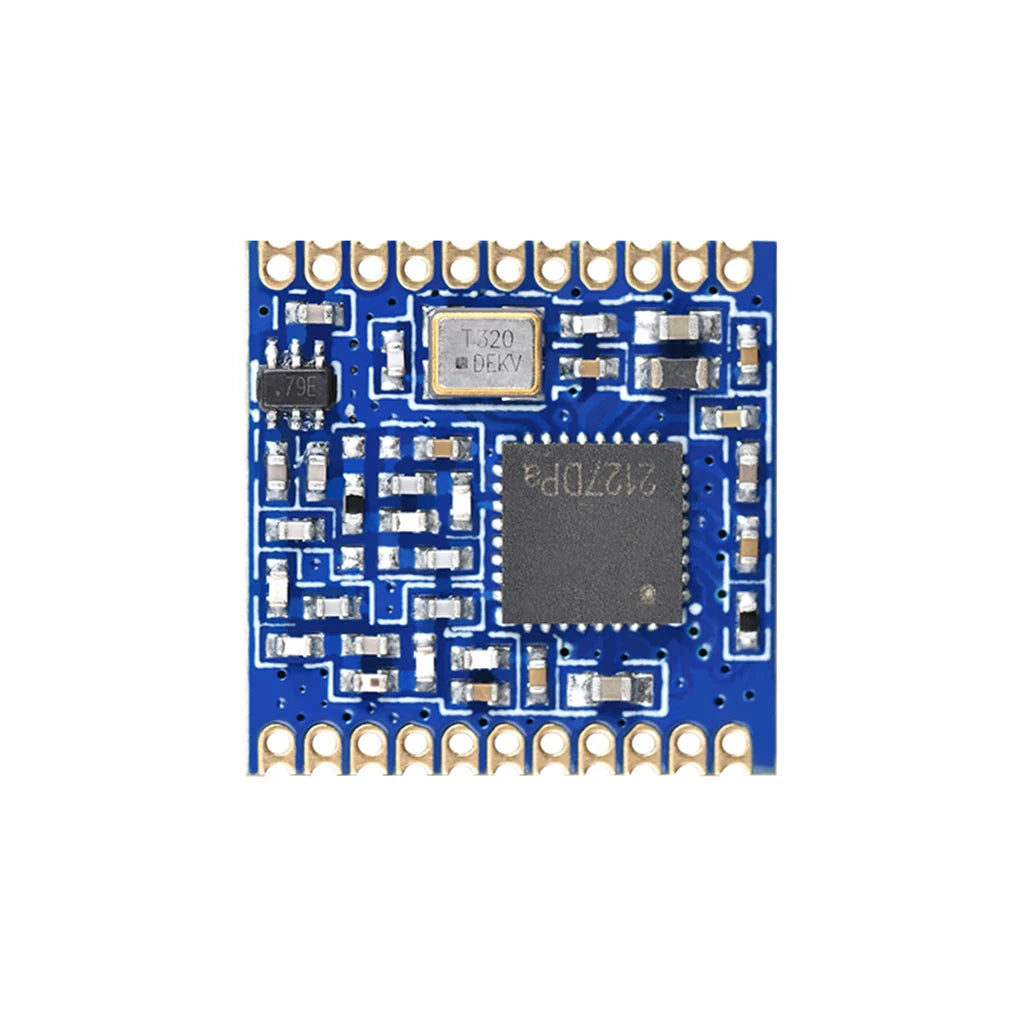

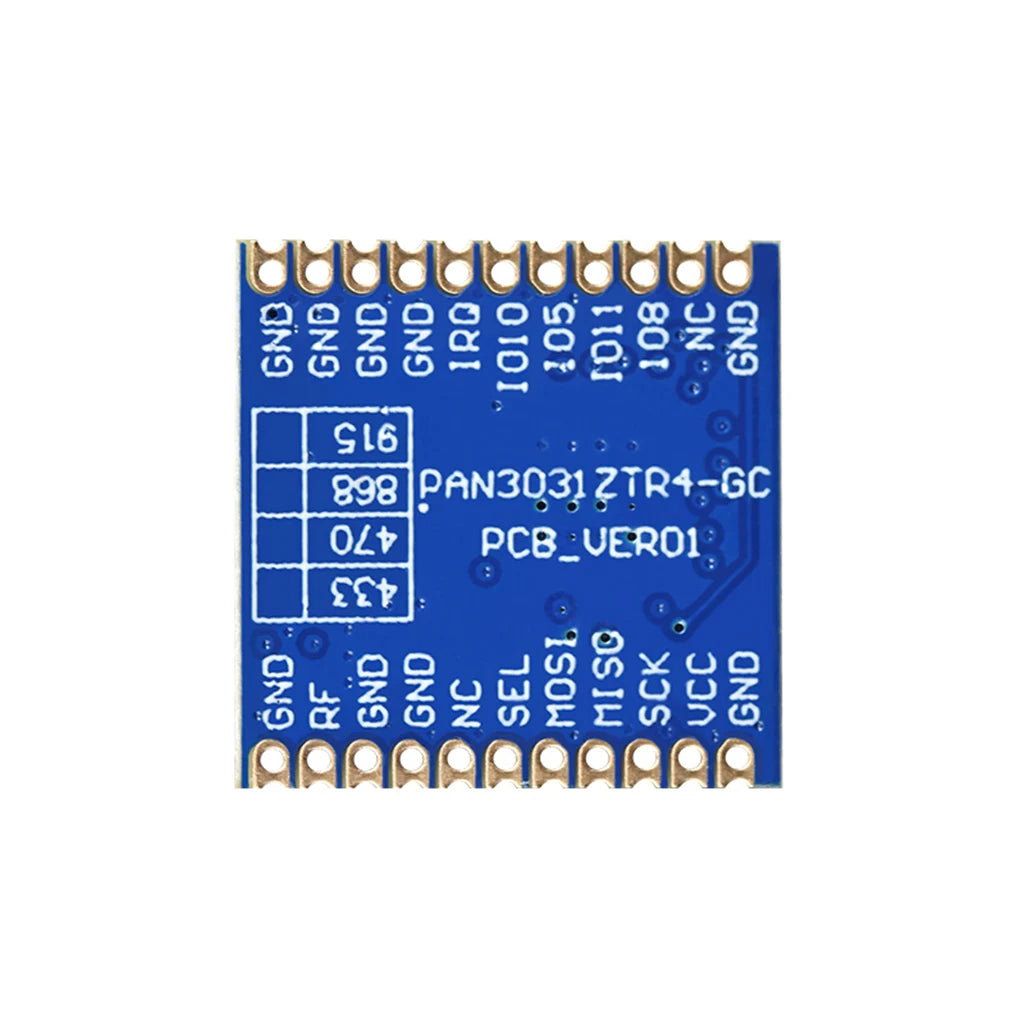

PAN3031 Wireless Data Transmission Module FHSS Modulation 433MHz Wireless Communication Module 3000m Distance with SPI Interface

Features.

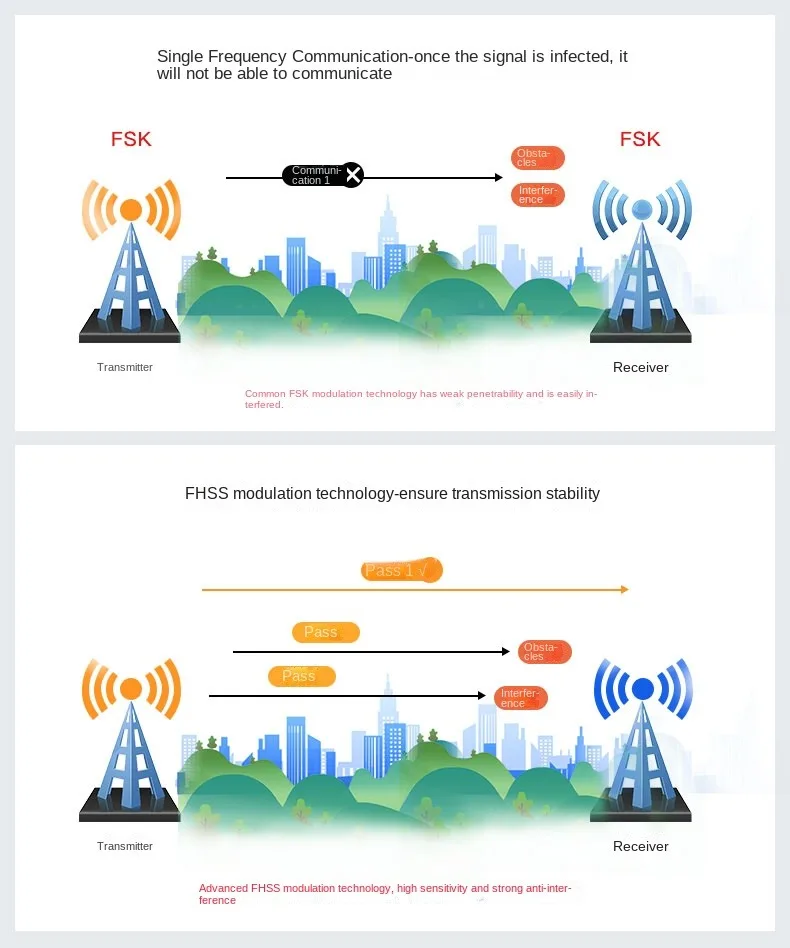

Adopt advanced FHSS modulation technology, high sensitivity, strong anti-interference.

FHSS modulation technology is far better than common FSK or GFSK, adjustable modulation bandwidth, spreading factor and error correction rate, communication distance up to 3000m.

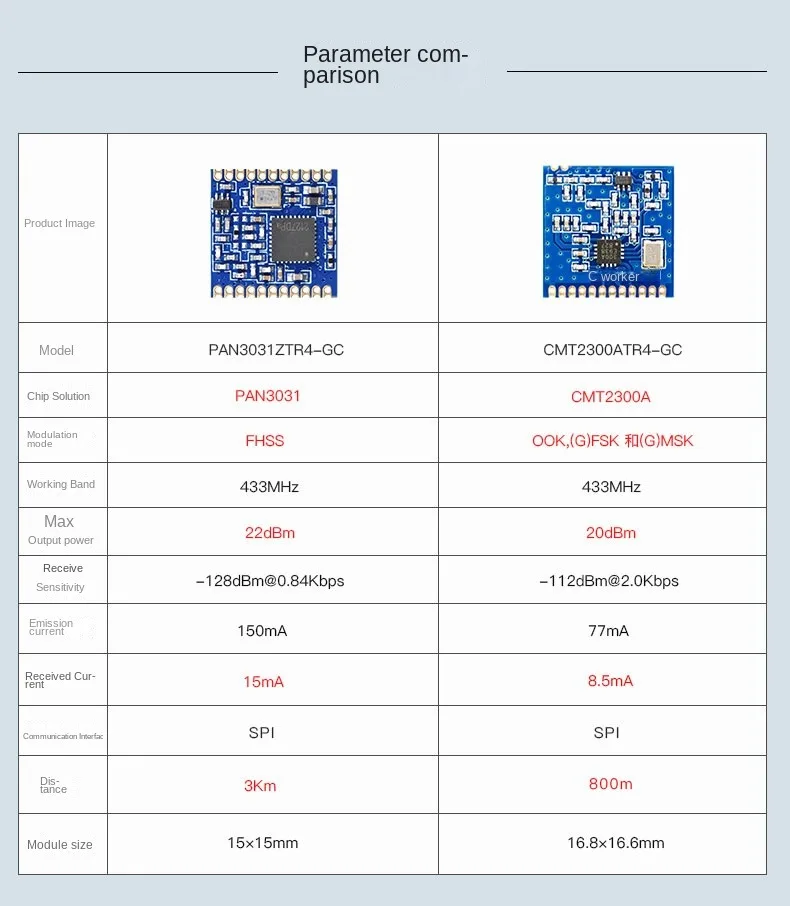

Parameters.

Chip solution: PAN3031

Modulation mode: FHSS

Operating frequency band: 433MHz

Maximum output power: 22dBm

Receiving sensitivity: -128dBm@0.84Kbps

Transmit current: 150mA

Receiving current: 15mA

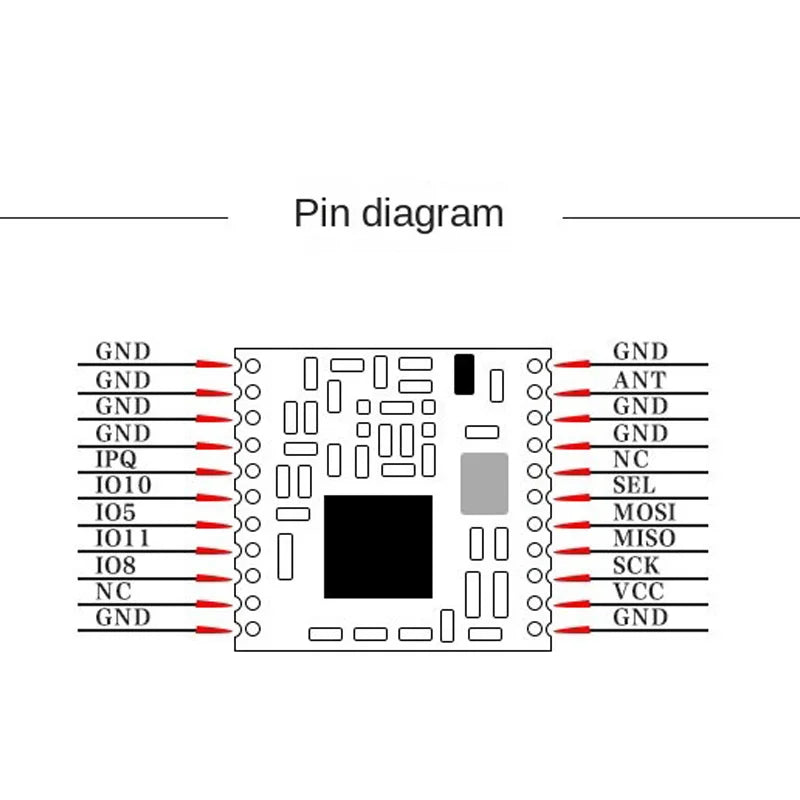

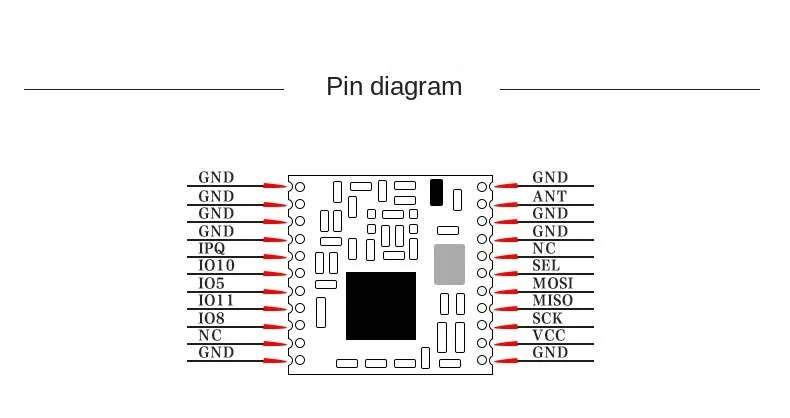

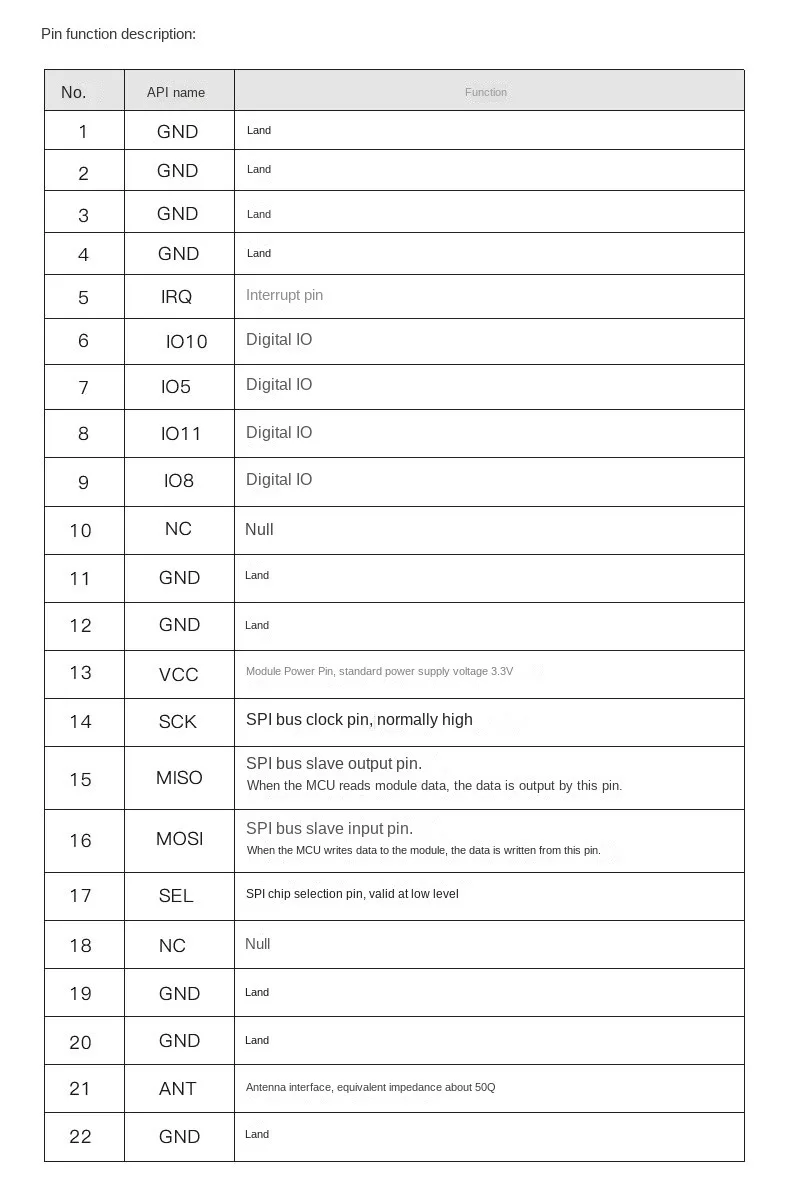

Communication interface: SPI

Distance: 3km

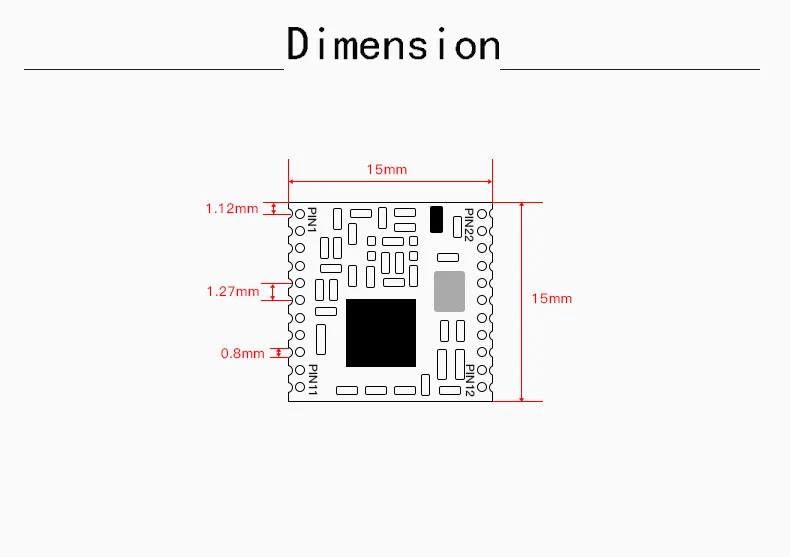

Size: 15*15mm

Q&A.

Q: What is the SPI hardware module.

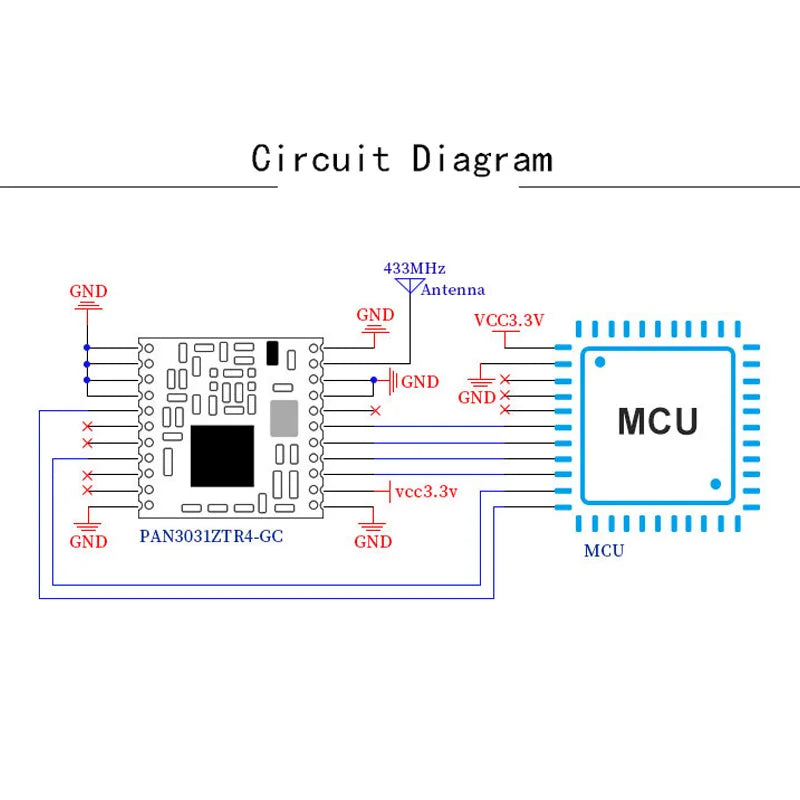

A: SPI wireless module is a pure hardware wireless module, its interface using the SPI universal mode, need to external connection MCU. programming the MCU to configure the module chip register parameters to complete data communication.
