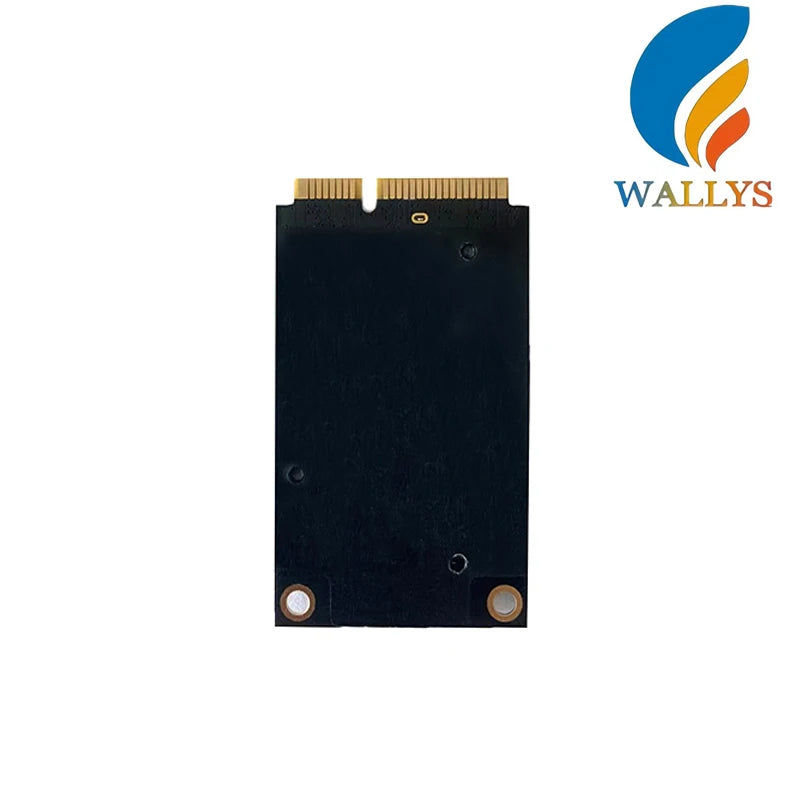

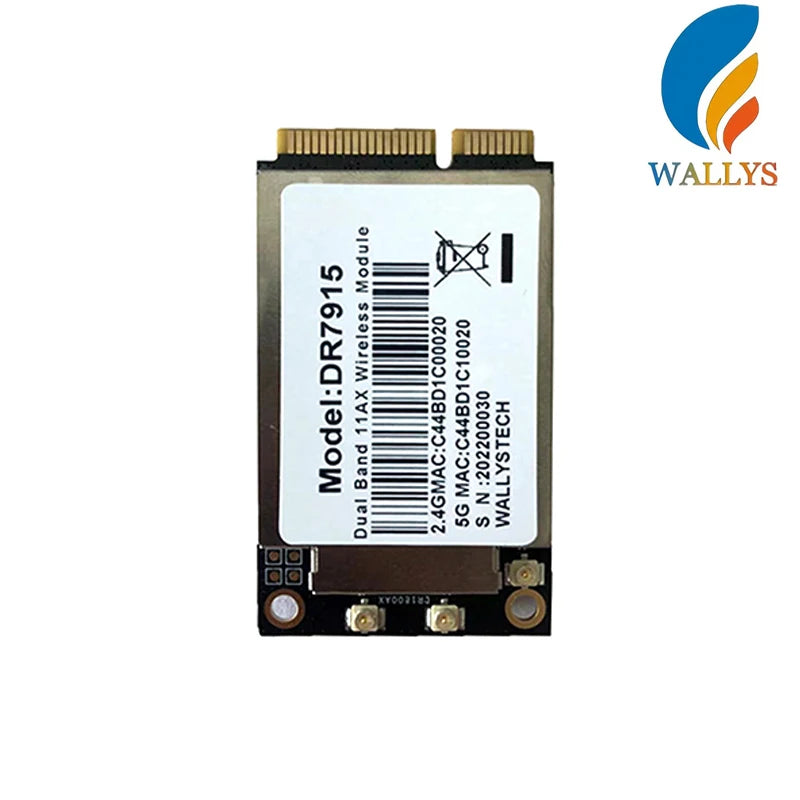

Wallys/Industrial 2×2.4GHz 2x5GHz mtk MT7915 MT7975 /Support Openwrt/MiniPCIe Module 2T2R Network Card DR7915 WiFi6/

Wallys  has been specializing in product design & manufacturing and delivering superior OEM/ODM services in wireless communications. Dedicated to innovative designs for wireless modules. Customization is also supported, We have 90% of the world market, We're a supplier to Facebook.

Skype/Email/T:sales2@wallystech.com

Proudct link：https://www.wallystech.com/Network_Card/DR7915-wifi6-MT7915-MT7975-2T2R-support-OpenWRT-802.11AX-supporting-MiniPCIe-Module.html

MT7915+MT7975Chipset

2.4GHz max 23dBm & 5GHz max 35dBm output power

IEEE 802.11ac / ax compliant & backward compatible with 802.11ax/ac/a/b/g/n

2×2 2.4G & 2×2 5G  MIMO Technology, up to 1.8Gbps Mini PCI Express edge connector

SupporttheFrequency2412MHz~2482MHz

SupporttheFrequency5180MHz~5825MHz

RoHS compliance ensure a high level protection of human health and the environment from risks that can be posed by chemicals

Supports Spatial Multiplexing,Cyclic-Delay Diversity (CDD), Low-Density Parity Check  (LDPC) Codes,Maximal Ratio Combining (MRC), Space Time Block Code (STBC)

Supports IEEE 802.11d, e, h, i, k, r, v time stamp, and w standards

Supports Dynamic Frequency Selection (DFS)

CardsareindividuallycalibratedforQualityAssurance

• Product Description

•


• DR 7915 based on MT7915 + MT7975 Chipset is an enterprise wireless module integrated with 2x2 2.4G high power Radio module and 2x2 5G high power Radio module designed

• specifically to provide users with mobile access to high-bandwidth video streaming, voice, and data transmission for office and challenging RF environment infactories, warehousese stablishment.

• Specifications

•


• Symbol	Parameter
  Chipset	MT7915+MT7975
  Host Interface	Mini PCI Express 2.1
  Antenna Connector	2 x UF.L
  Frequency Range	2.4GHz: 2.412GHz to 2.472GHz 5GHz: 5.180GHz to 5.825GHz
  Operating Voltage	3.3V DC
  Power Consumption	TBD
  Modulation Techniques	OFDM: BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM
  Environmental Temperature	Operating: -40°C to 70°C, Storage: -40°C to 90°C
  Environmental Humidity, non-condensing	Operating: 5% to 95%, Storage: Max. 90%
  ROHS Compliance	YES
  Dimensions (W×H×D)	51mm × 30mm × 5.8mm
